Master link assembly with 2 integrated chain coupling rings (CR Series) for 2 legs

Master link assembly with 2 integrated chain coupling rings (CR Series) for 2 legs

DCR2 Series

Manufactured according to: EN 1677-4
2 - 26,5 t Working Load Limit (WLL)

Download certificate CR (DGUV)

Download certificate D DF (DGUV)

masterlink_grade10_dcr2-series

product_shadow_01

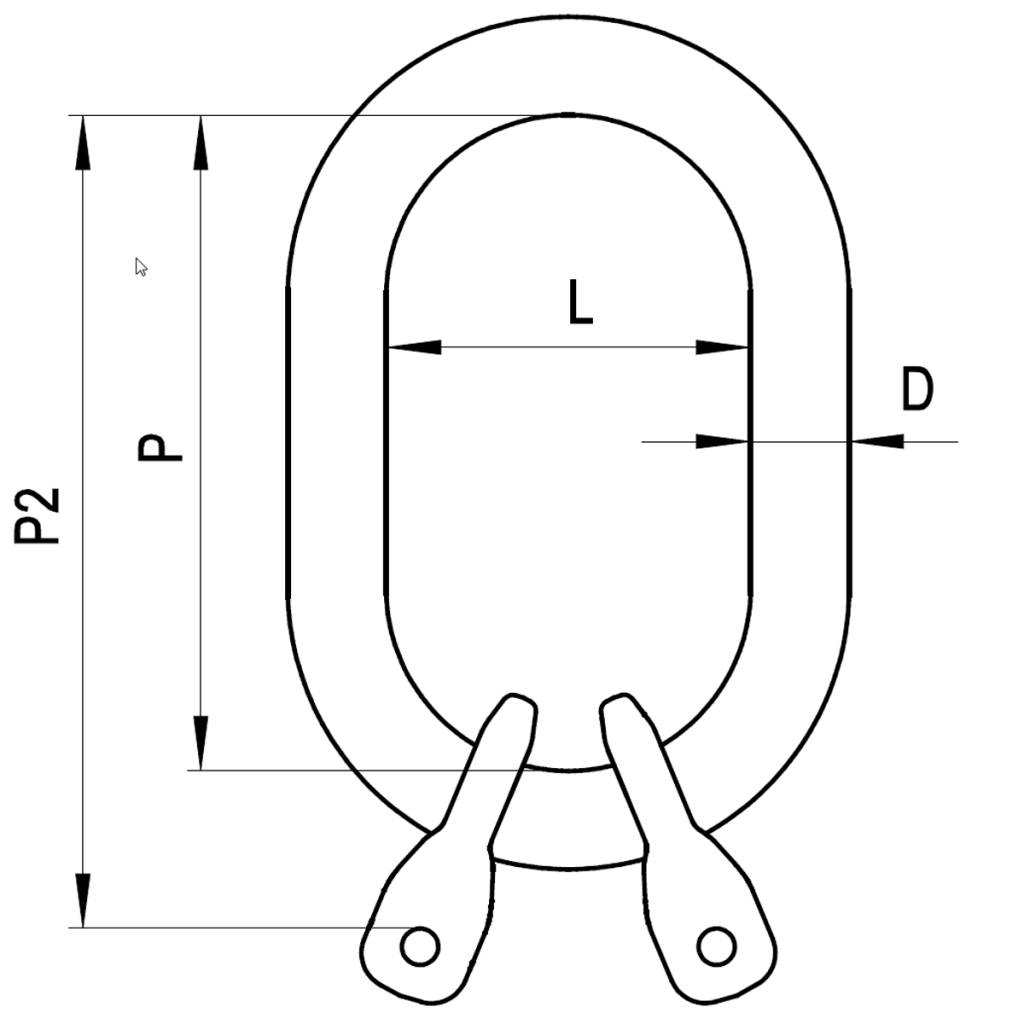

DCR2 Series Specifications	Article	Matching Chain (mm)	Dimension (mm)				Weight (kg) / Approx	WLL (t) / Max - up to 45°
		2 legs	D	P	P2	L
	D13CR2	6	13	110	141	60	0,52	2
	D18CR2	7-8	19	135	176	75	1,4	3,55
	D22CR2	10	23	160	210	90	2,47	5,6
	D26CR2	13	27	180	244	100	4,2	9,5
	D32CR2	16	33	200	276	110	7,26	14
	D36CR2	19-20	36	260	355	140	12,2	22,4
	D45CR2	22	45	340	443	180	20,22	26,5
